6 AWG Silicone Wire RC 6AWG
6 AWG Silicone Wire RC 6AWG
Regular price
£209.50 GBP
Regular price
Sale price
£209.50 GBP
Taxes included.
Quantity
Couldn't load pickup availability

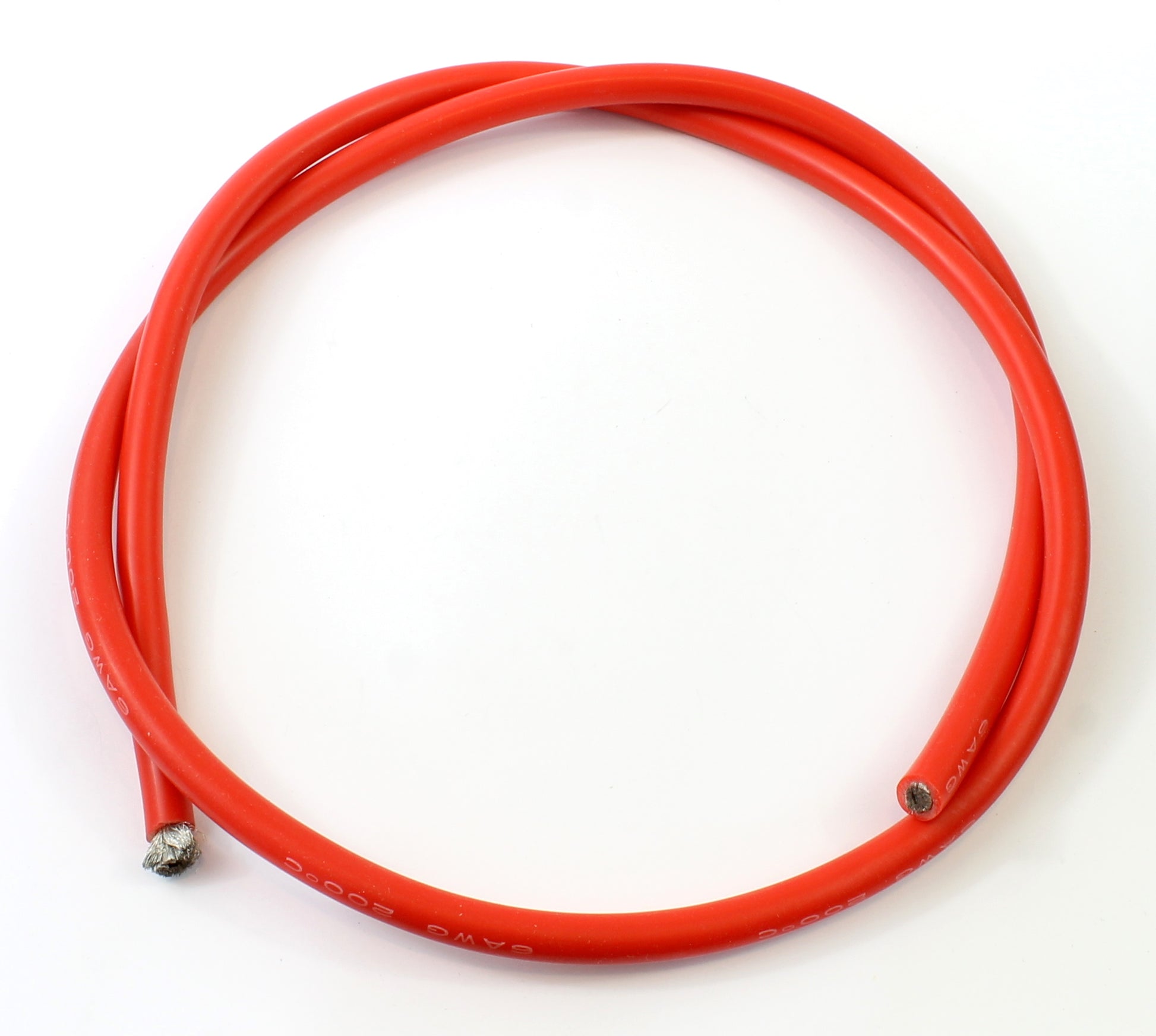

High quality 6 AWG Silicone Cable Suitable for all RC/Electrical projects
Stranded 6AWG 200C Silicone cable. Available in 0.25/0.5/1/2/5/10m lengths. Perfect for wiring RC models.

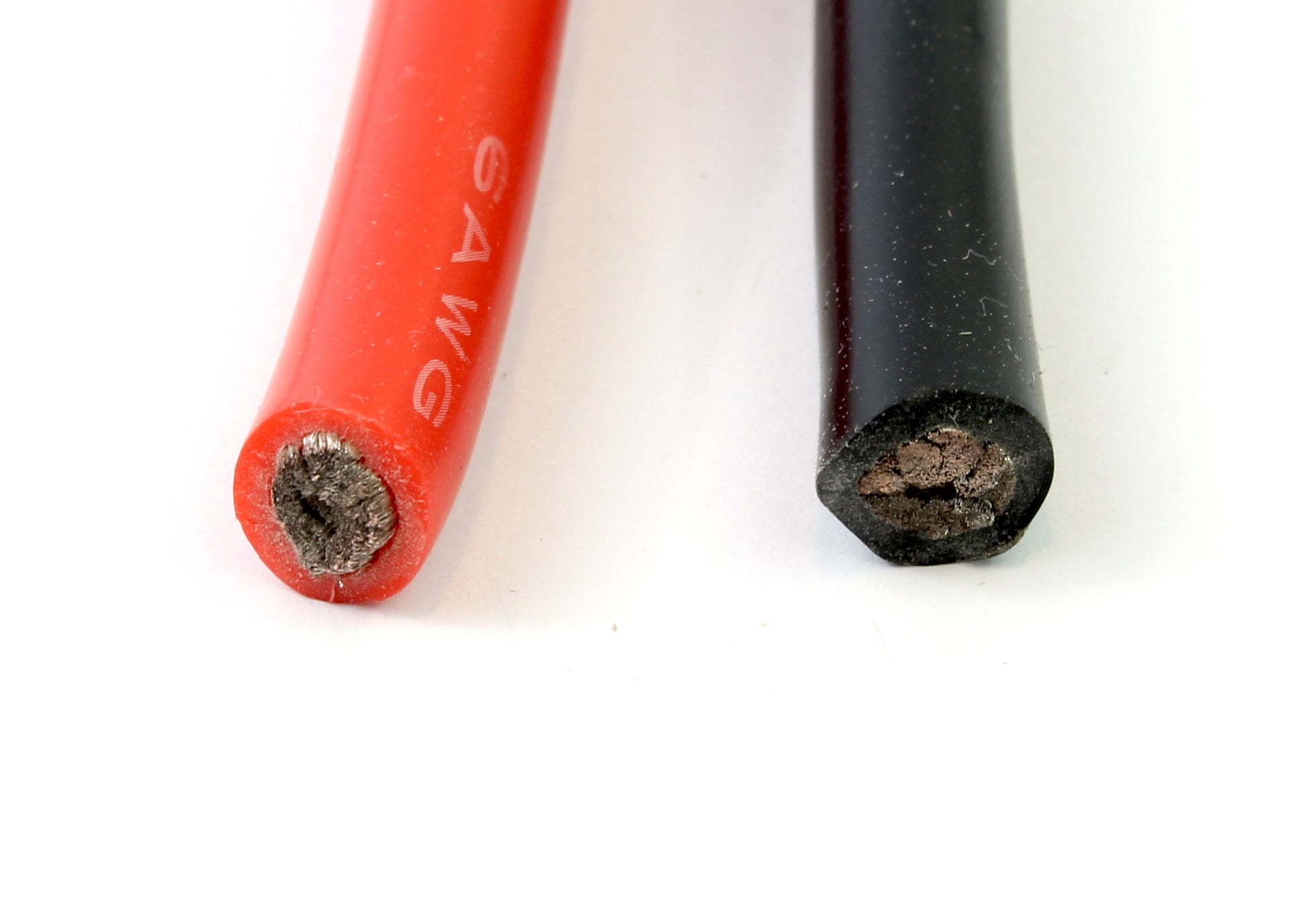

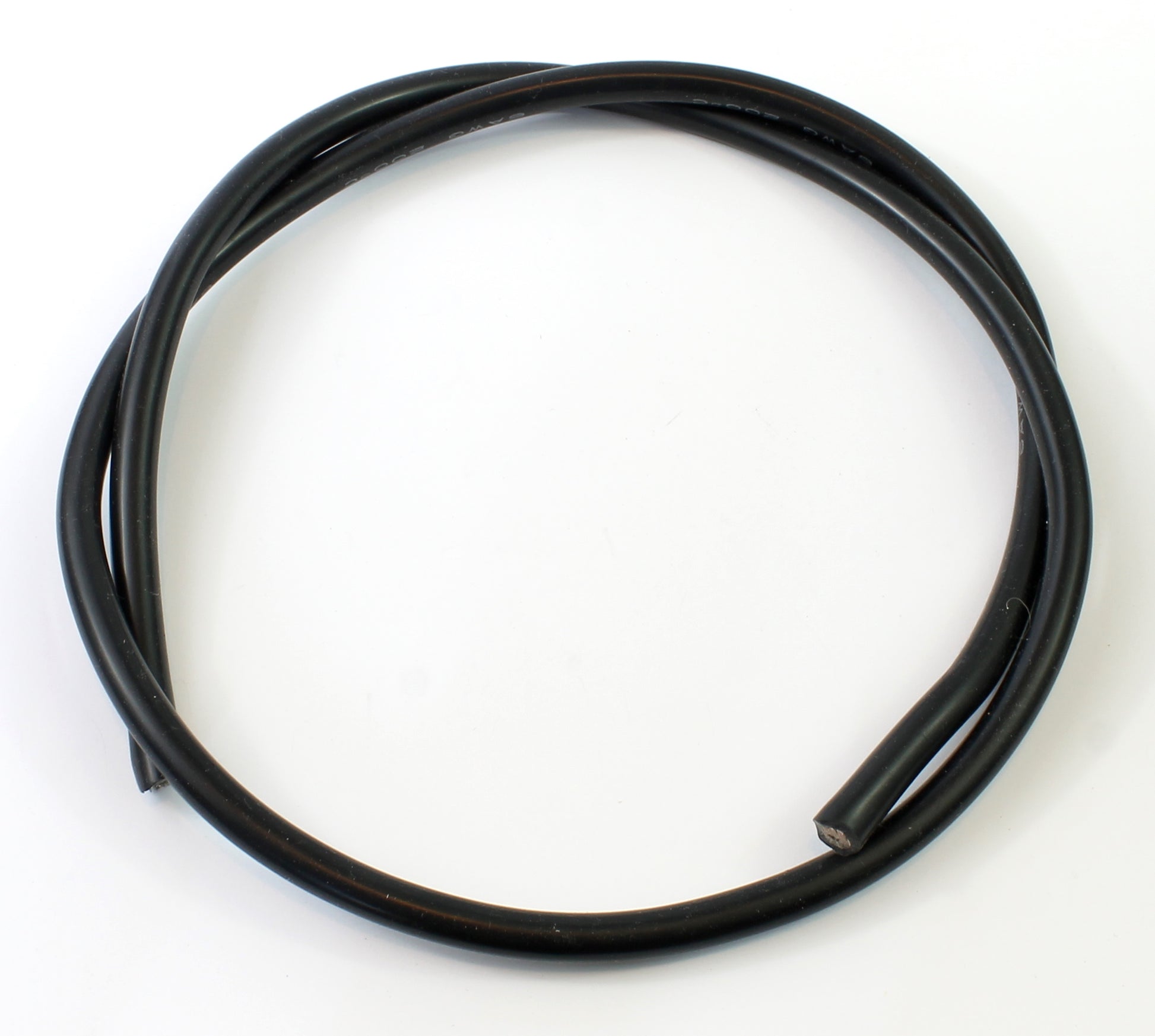

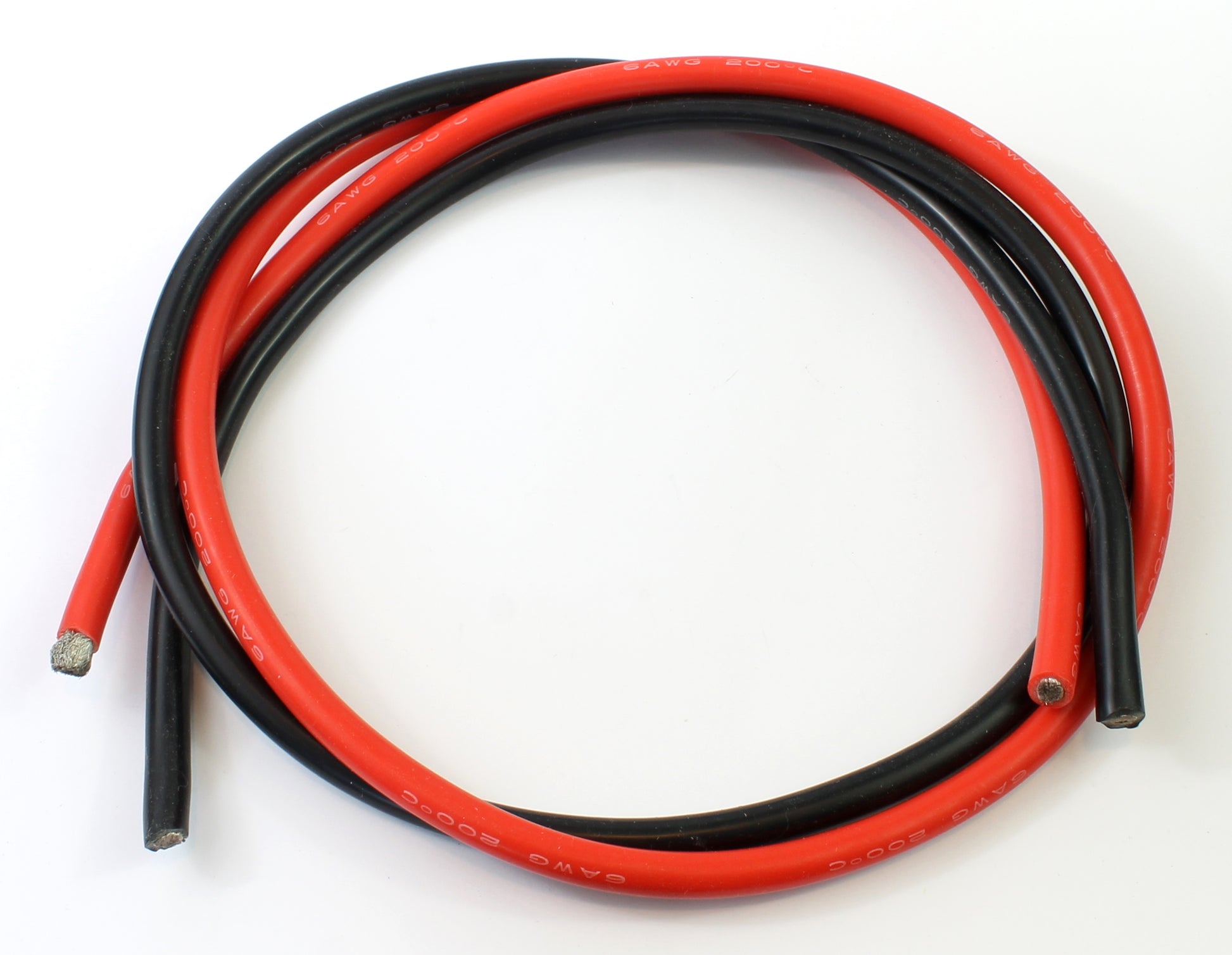

Red and Black colours available.
See product options.
- Can handle temperature of up to 200 degress centigrade
- Pure Silicone sheath
- Tinned pure Copper strands (easy solder).
Specification of our Silicone Wire range
| Awg | Copper Specification | SECTION AREA mm2 | Copper Diameter mm | INSULATION AVERAGE THICKNESS(MM) | INSULATION MINIMUM THICKNESS(MM) | Voltage V | Degree | Over Diameter(MM) | Current (Amps) |
|---|---|---|---|---|---|---|---|---|---|
| 18AWG | 150/0.08TS | 0.75 | 1.13 | 0.59 | 0.56 | 600V | 200°C | 2.3 | 7.5 |
| 16AWG | 252/0.08TS | 1.25 | 1.47 | 0.77 | 0.75 | 600V | 200°C | 3 | 12.5 |
| 14AWG | 400/0.08TS | 2 | 1.78 | 0.83 | 0.8 | 600V | 200°C | 3.4 | 20 |
| 12AWG | 680/0.08TS | 3.4 | 2.41 | 1.05 | 0.98 | 600V | 200°C | 4.5 | 34 |
| 10AWG | 1050/0.08TS | 5.3 | 2.9 | 1.3 | 1.2 | 600V | 200°C | 5.3 | 53 |
| 8AWG | 1650/0.08TS | 8.3 | 3.5 | 1.5 | 1.4 | 600V | 200°C | 6.2 | 83 |
| 6AWG | 3200/0.08TS | 16 | 5.2 | 22 | 2 | 600V | 200°C | 8.5 | 160 |
