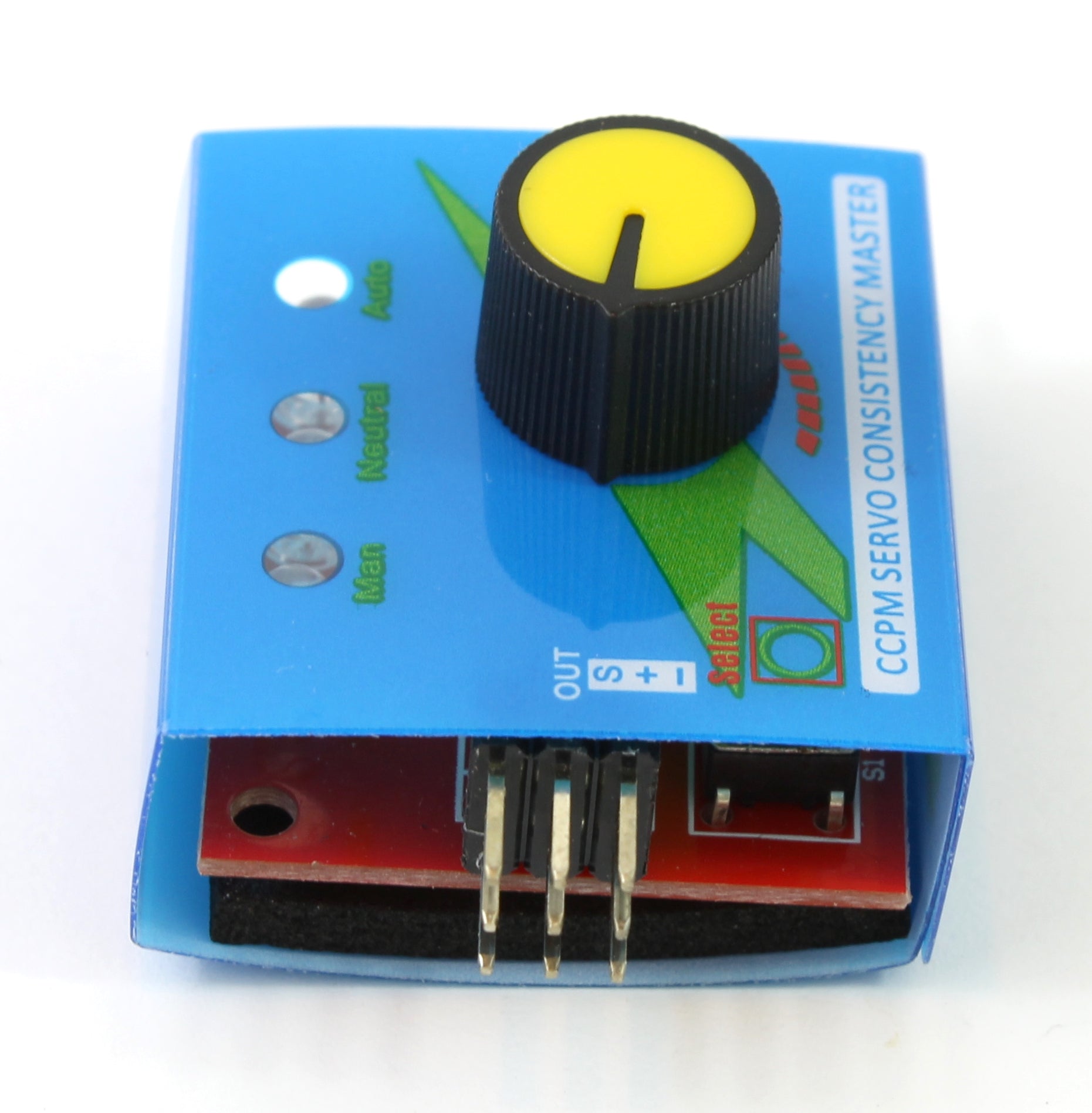

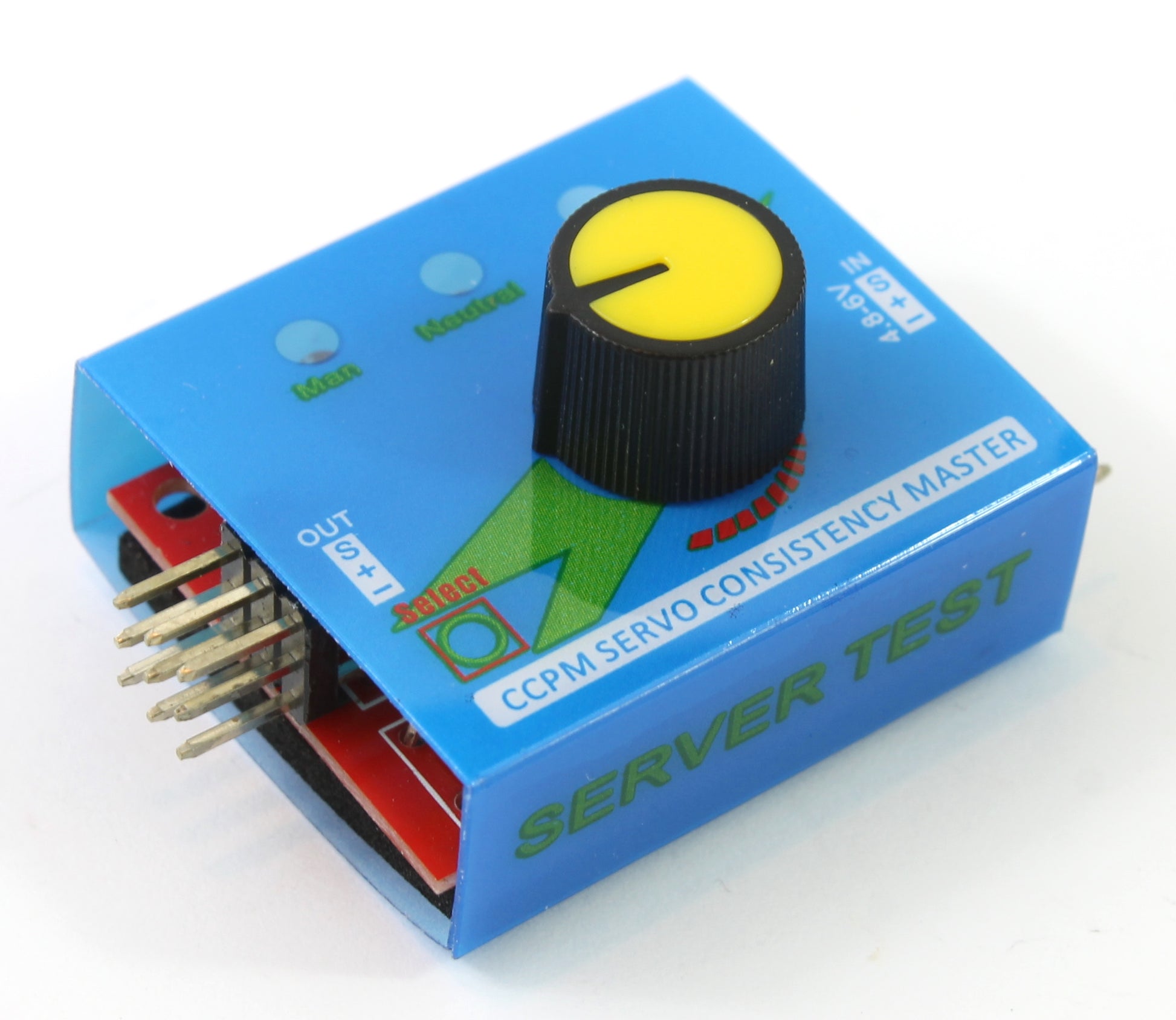

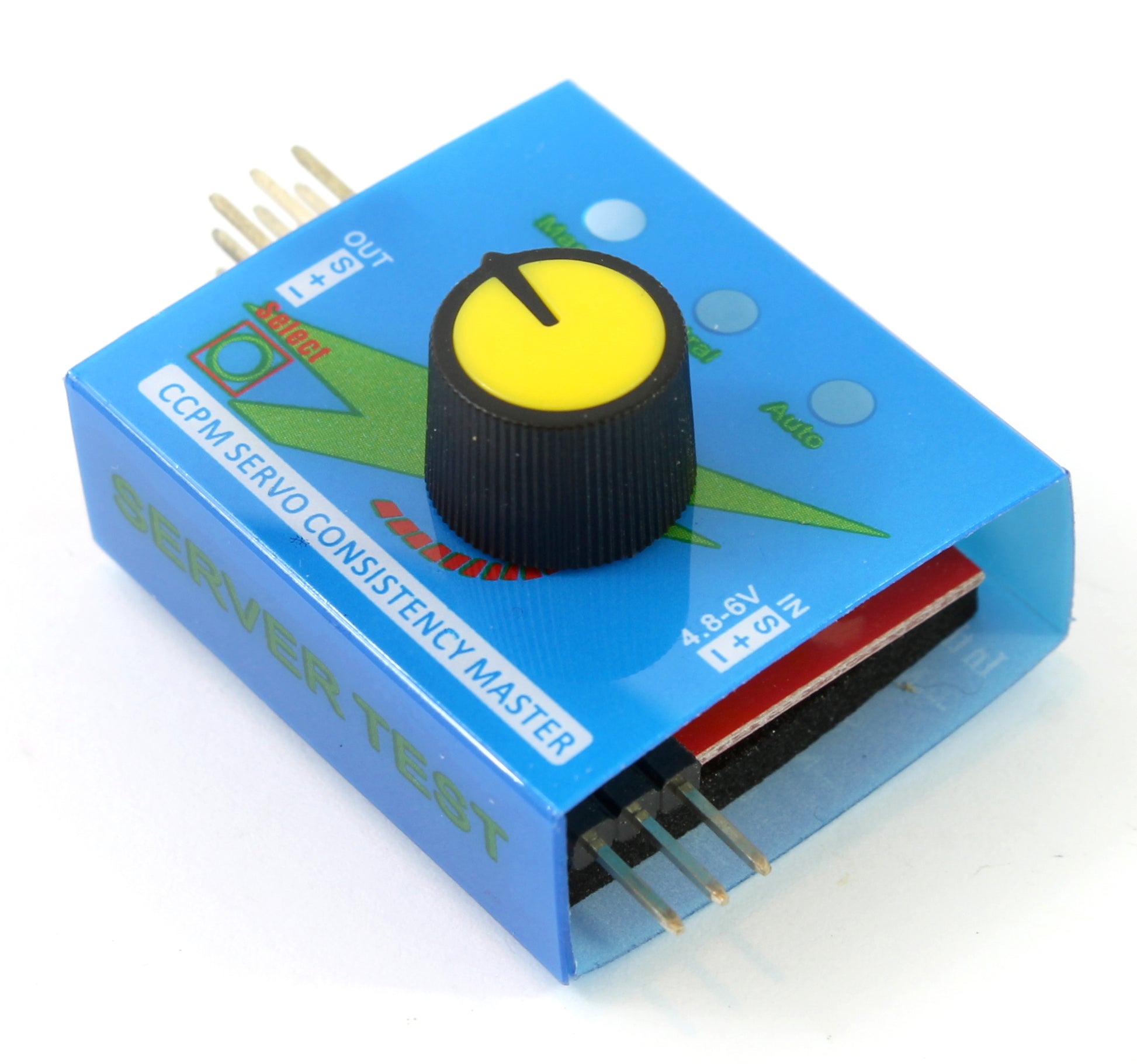

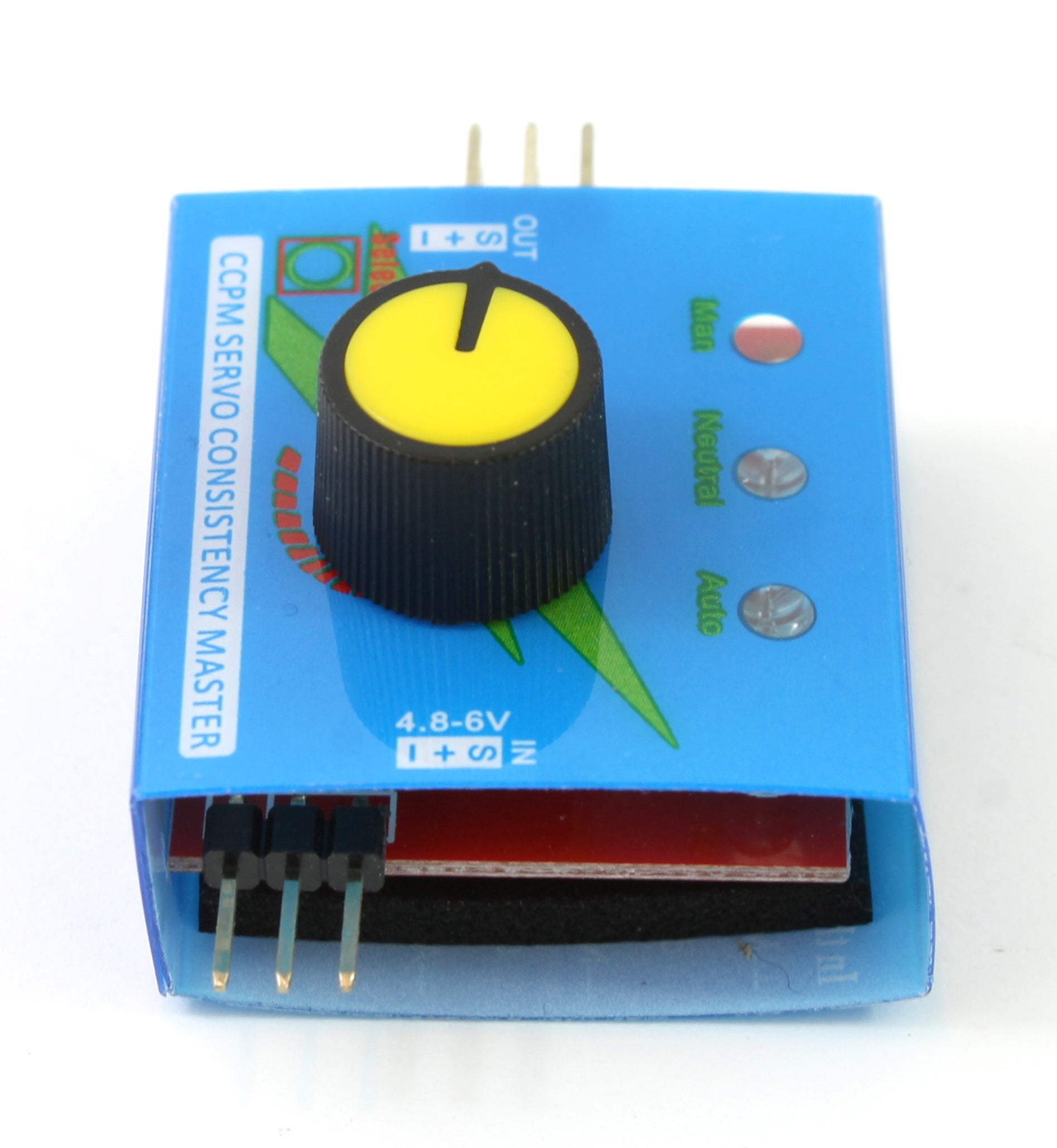

Multi Servo Tester / Checker 3CH ECS Consistency Speed Controller Power Channel CCPM Meter

Multi Servo Tester 3CH ECS Consistency Speed Controller Power Channel CCPM Meter

The servo tester can be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver.It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on. You can also connect 1-3 ESC to test and compare their reaction time respectively.

Features:

1.Servo Tester: With the servo tester, you can test your motor system without using a transmitter and receiver

2.3 Mode: There are 3 modes to check servos or ESC

3.Manual Mode: Turn the knob with different speed, check the reaction time

4.Neutral Mode: Make the servo go back to the neutral point

5.Automatic Mode: "window wiper" ,Make the servo swing like a window wipers in the biggest angle

Specification:

Type: CCPM Servo Tester, ESC or Servo tester

Output: ≤15mA (5.0)

Voltage Consumption: DC4.8-6V

Output Signal: 1.5ms ±0.5ms

Size: 48 x 42 x 17mm/1.89'' x 1.65 x 0.67''(Approx.)

Color: Blue
