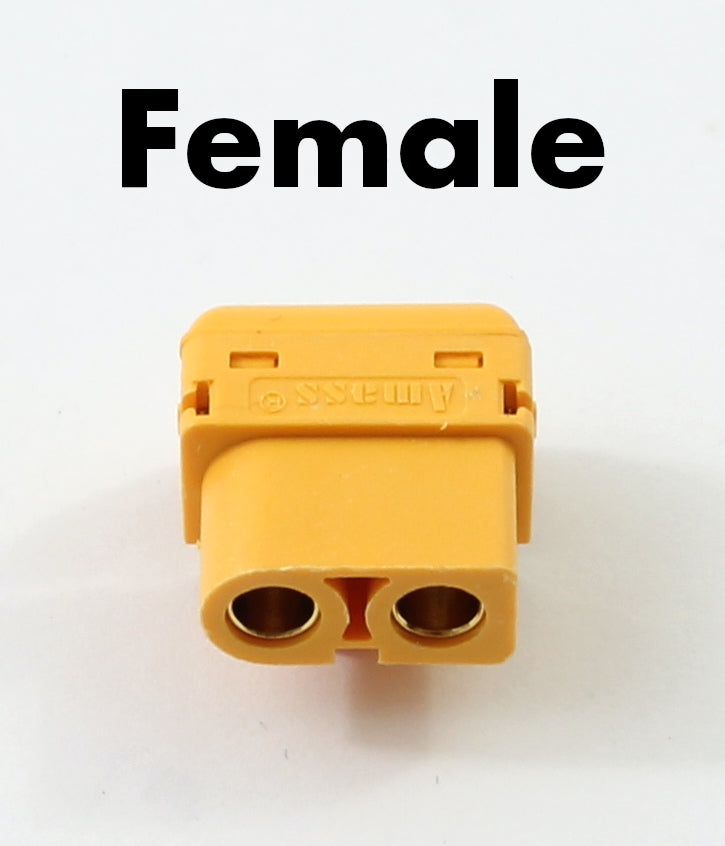

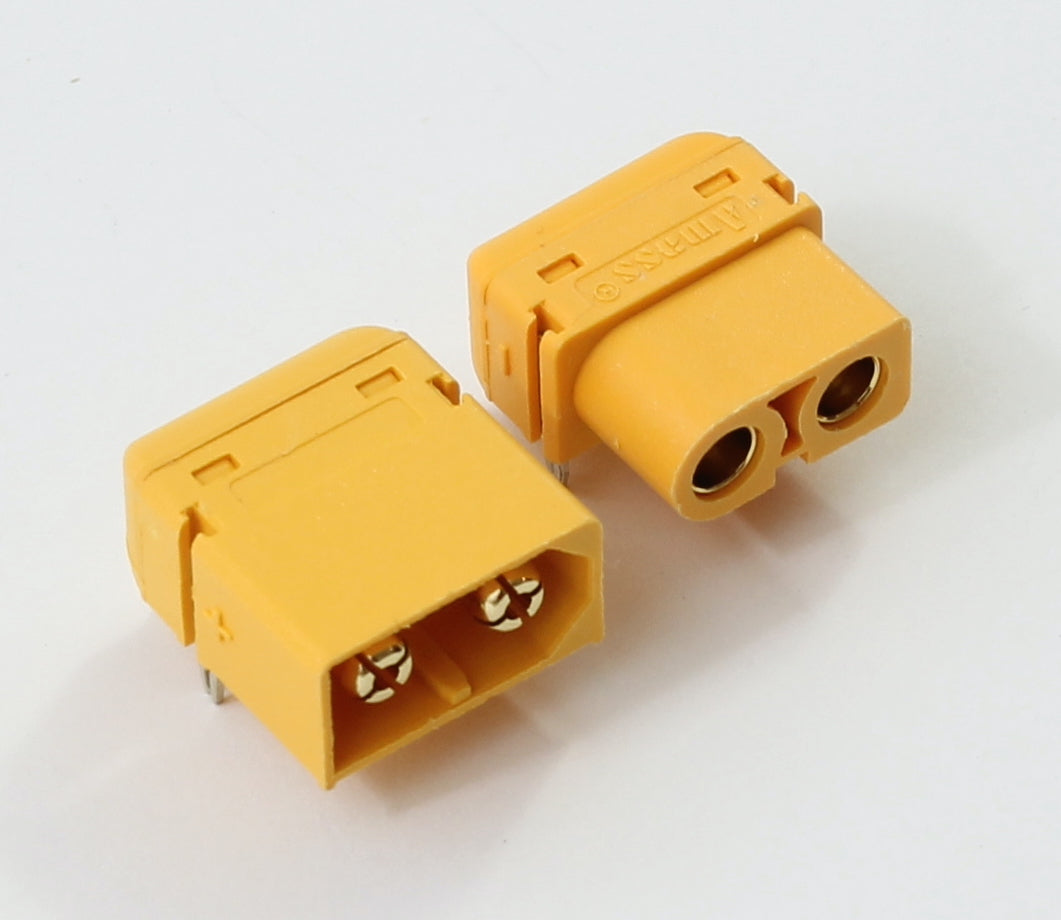

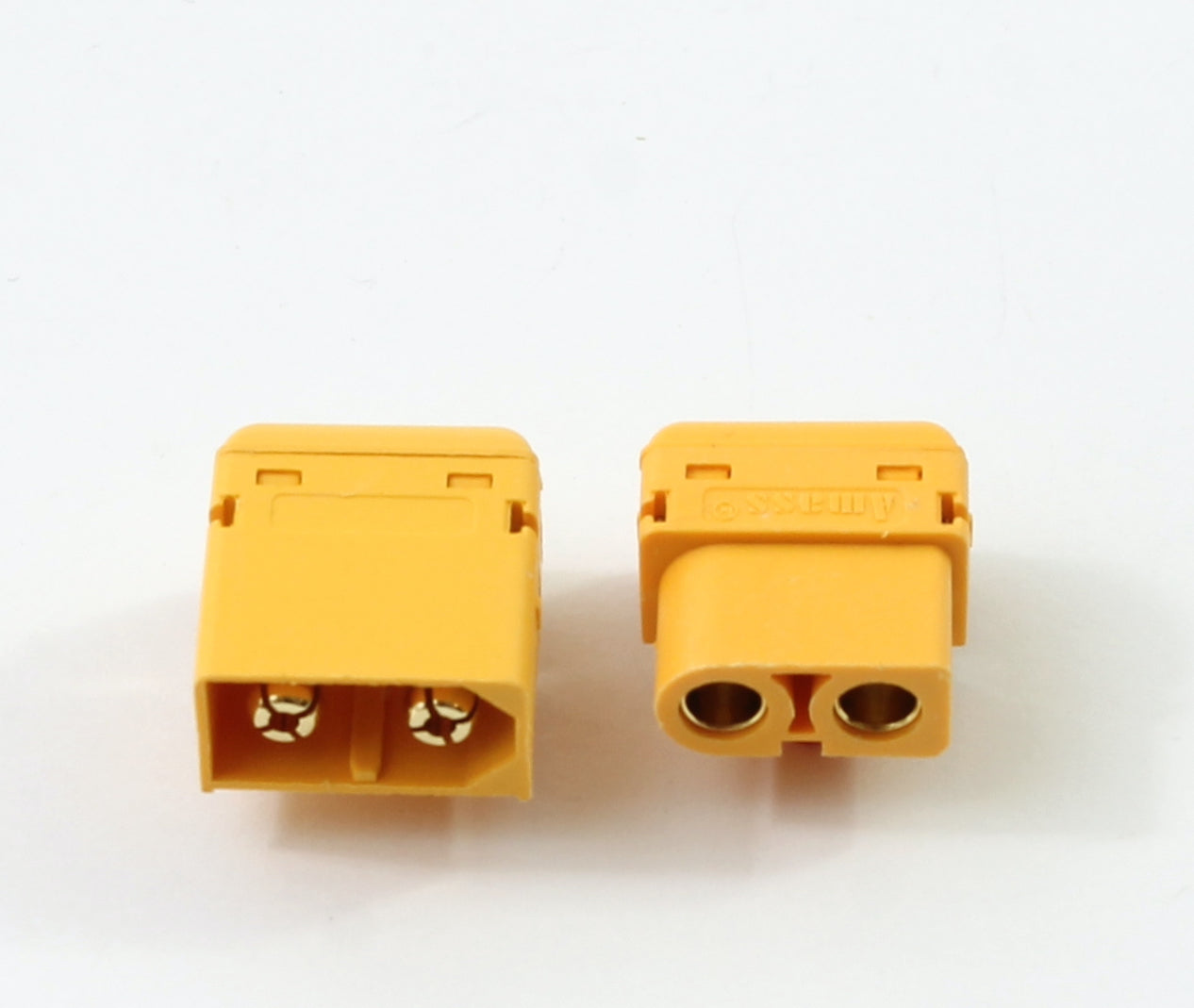

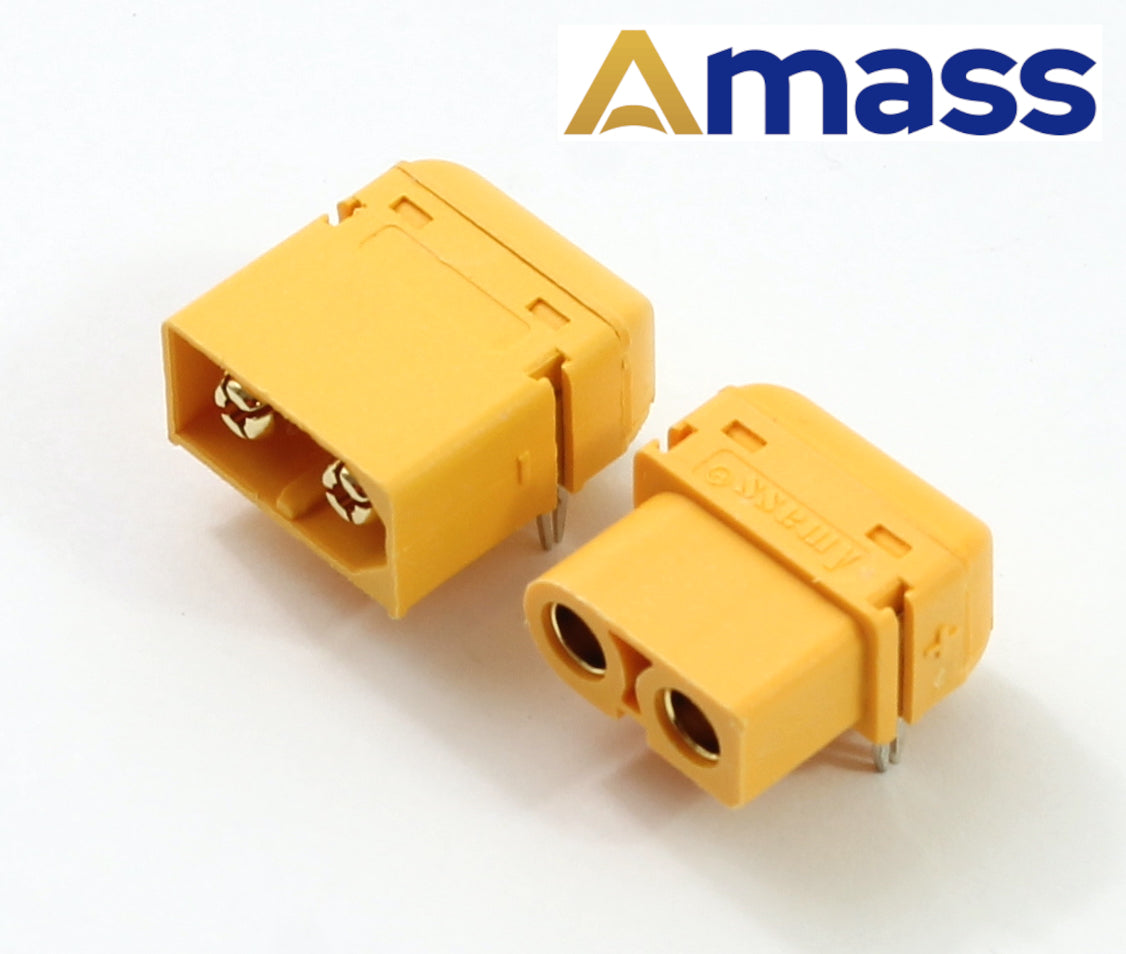

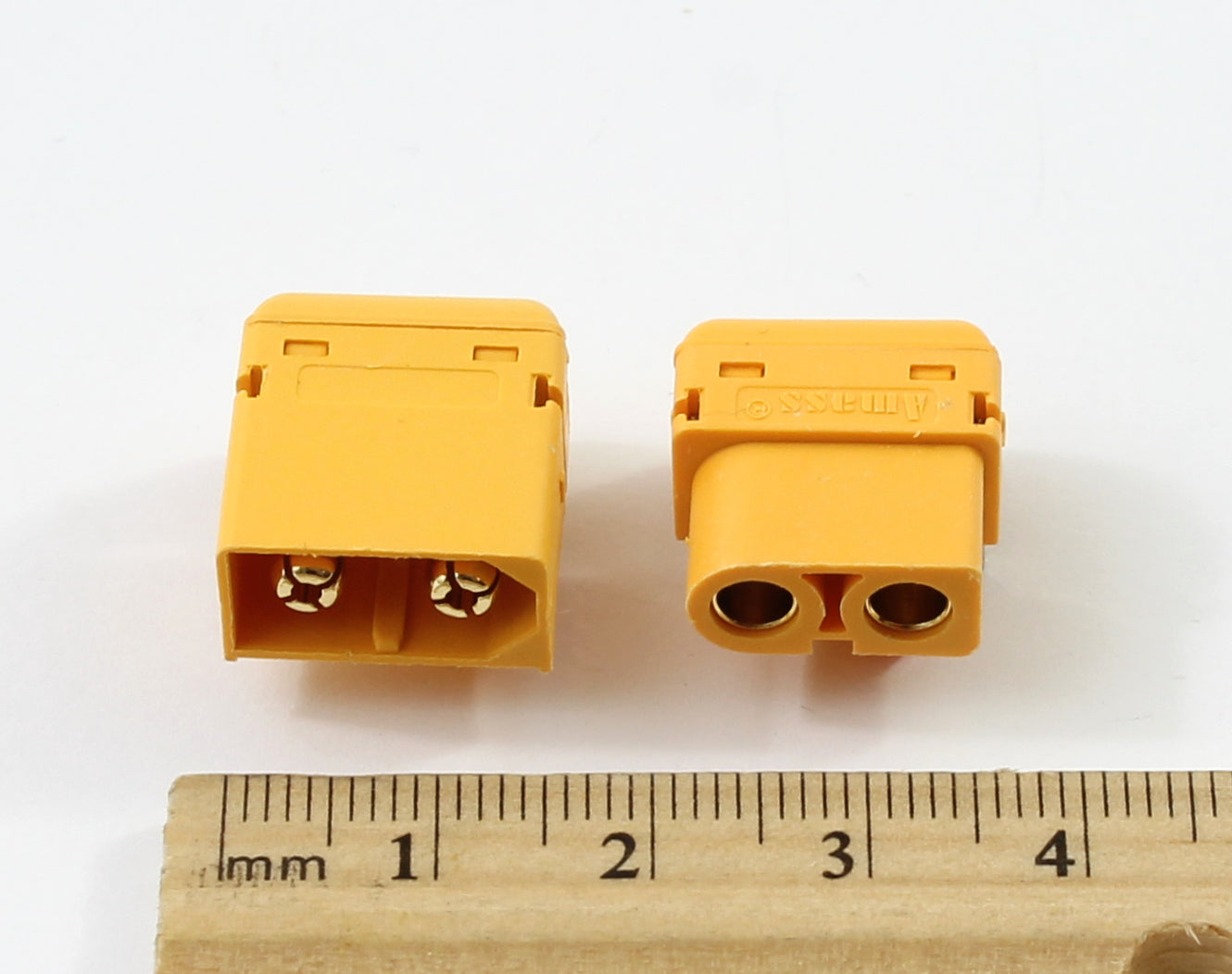

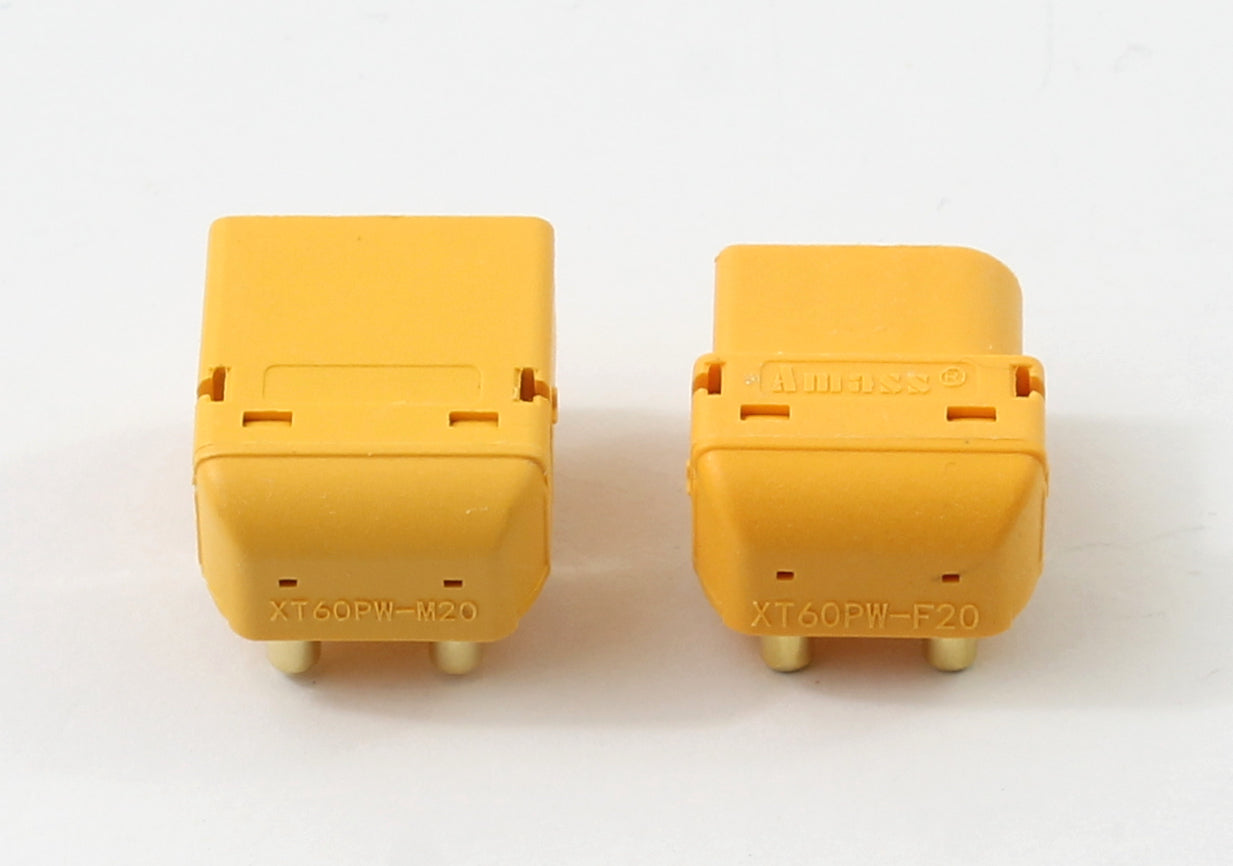

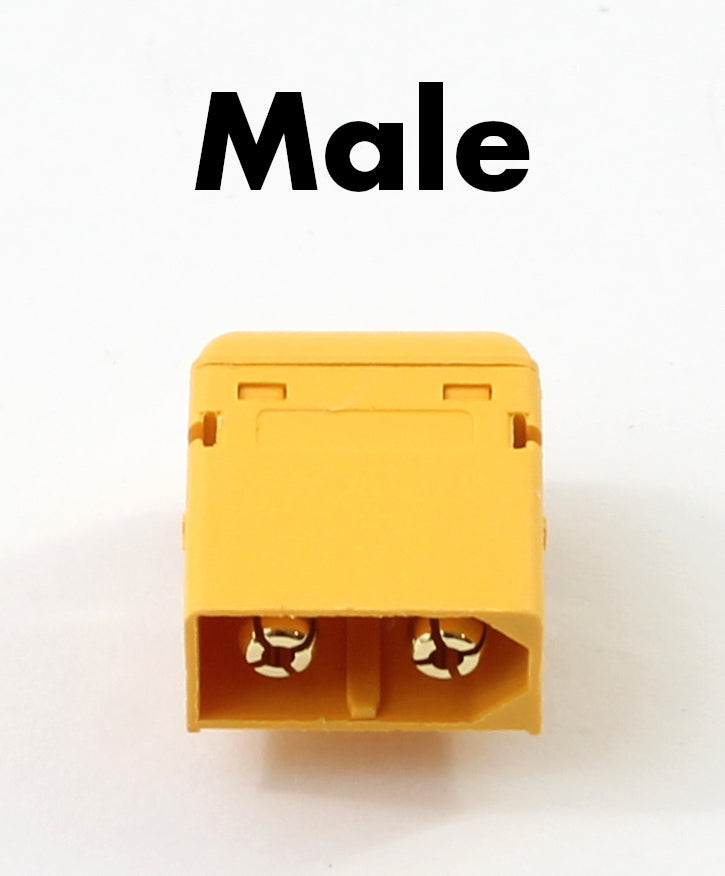

GENUINE AMASS YELLOW XT60PW Surface Mount Male Female Connectors/Plugs F20 M20 - Suitable For most types of electrical project!
Maximum Voltage: DC 500v
Maximum Current: 60A
CR: 0.50mΩ
Metal material: Gold plated Brass
Plastic material: PA Polyamide / Nylon
Usage: In excess of 1000 connections
Operating temperature: -20C to 120C
See product options for different quantities and sexes (male/female).
Manufacturers information
High quality, genuine Amass (XT60 patent holders) connectors. Don't accept cheap low quality imitations! Suitable for all RC projects and electrical applications.
Solid Bullet Connectors
Perfect for applications up to and beyond 30A constant
Low resistance for high current capacity
Ergonomically designed and easy to grip
Protected to avoid shorting and reverse polarity
Superior technology suited to today’s high power applications
Designed with convenience and reliability in mind
Easy to un-solder and reuse
Made from high-temp Nylon and gold plated spring connectors, both included in the injection mould at the time when forming the connector. The XT60PW ensures a solid high-amp connection.
