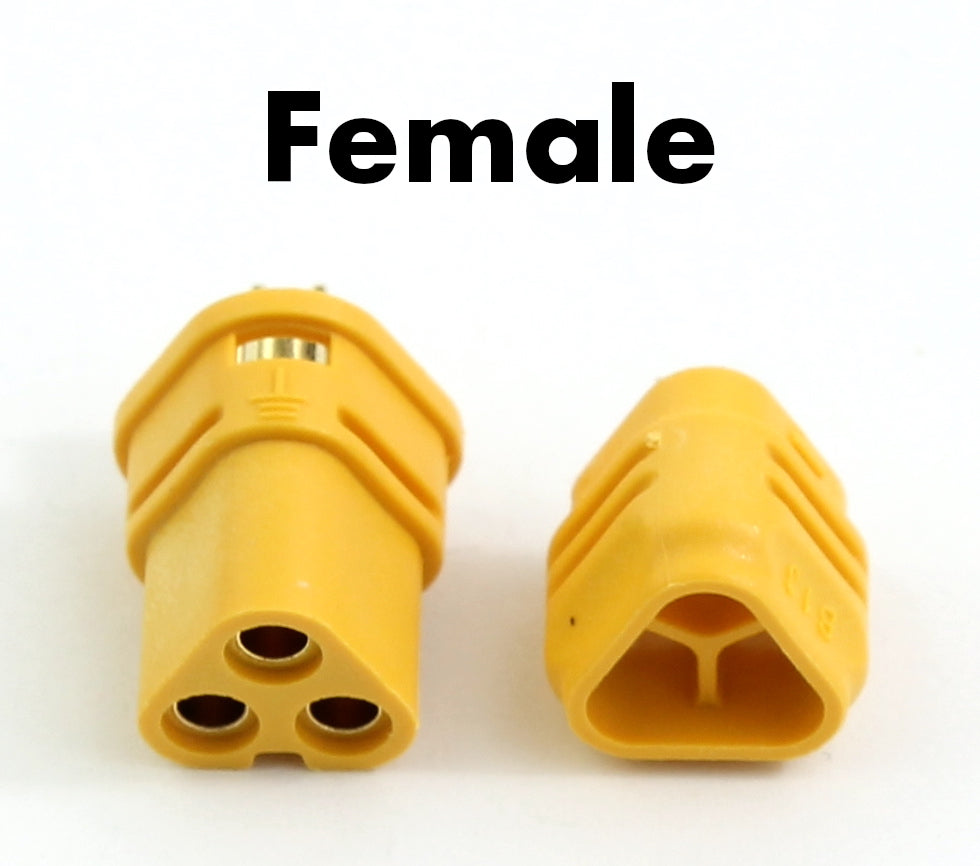

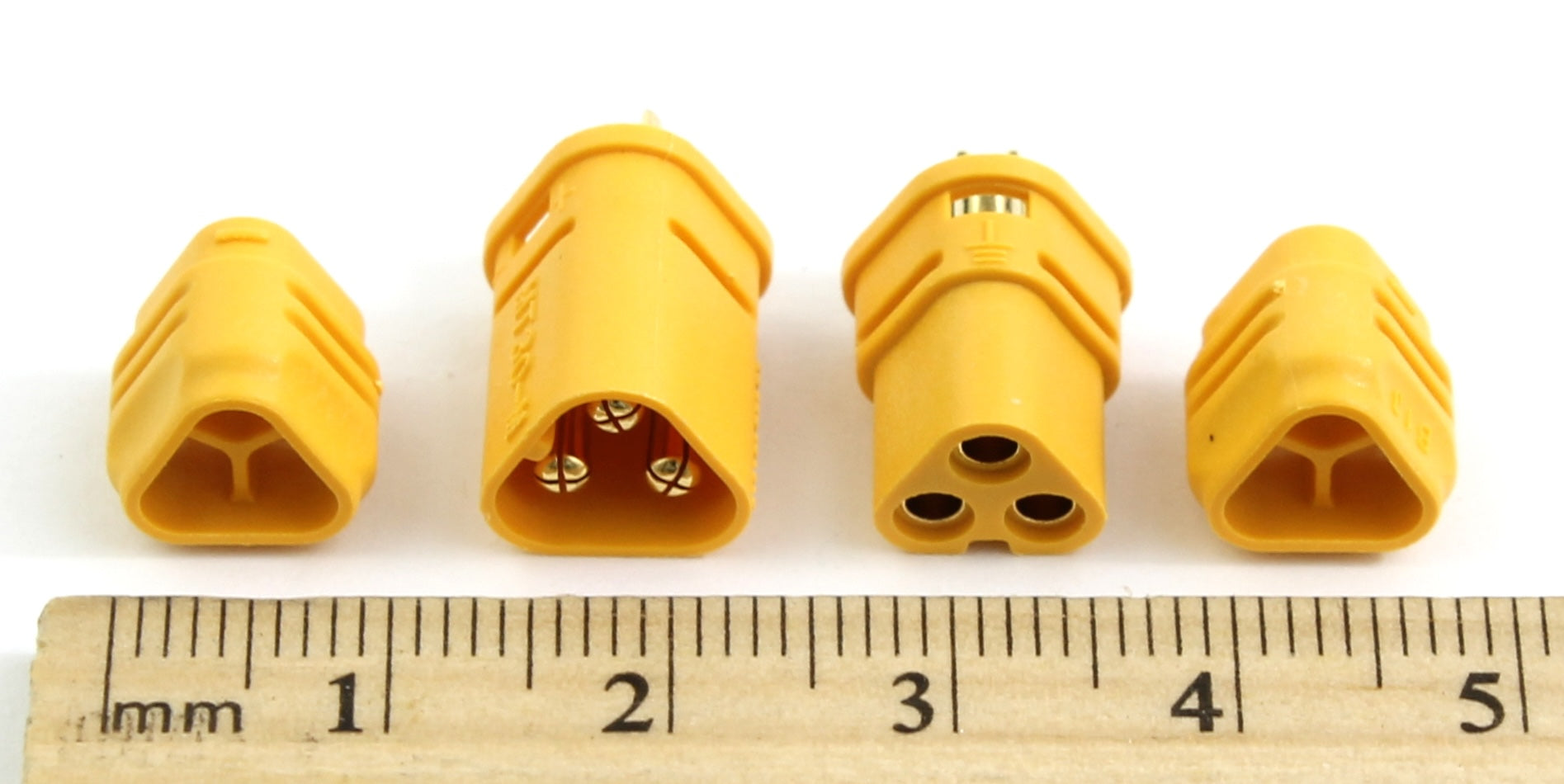

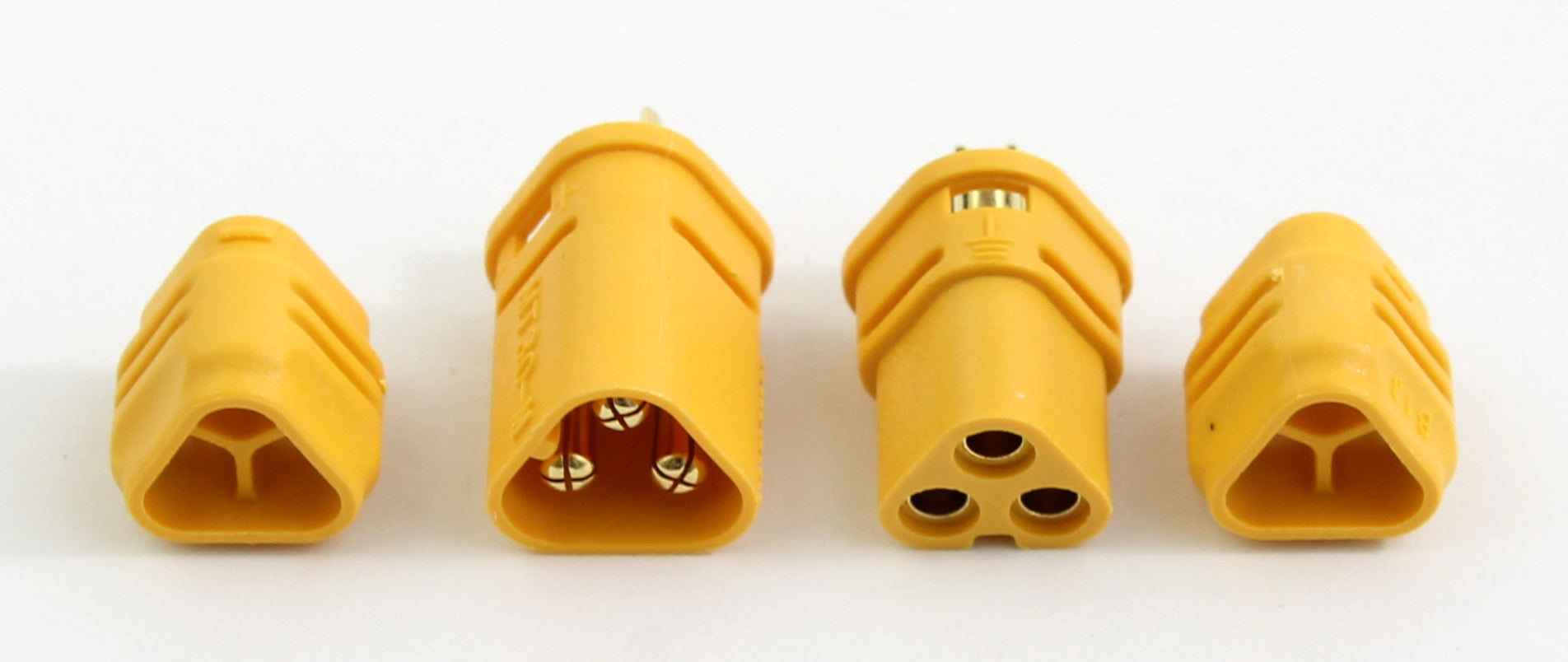

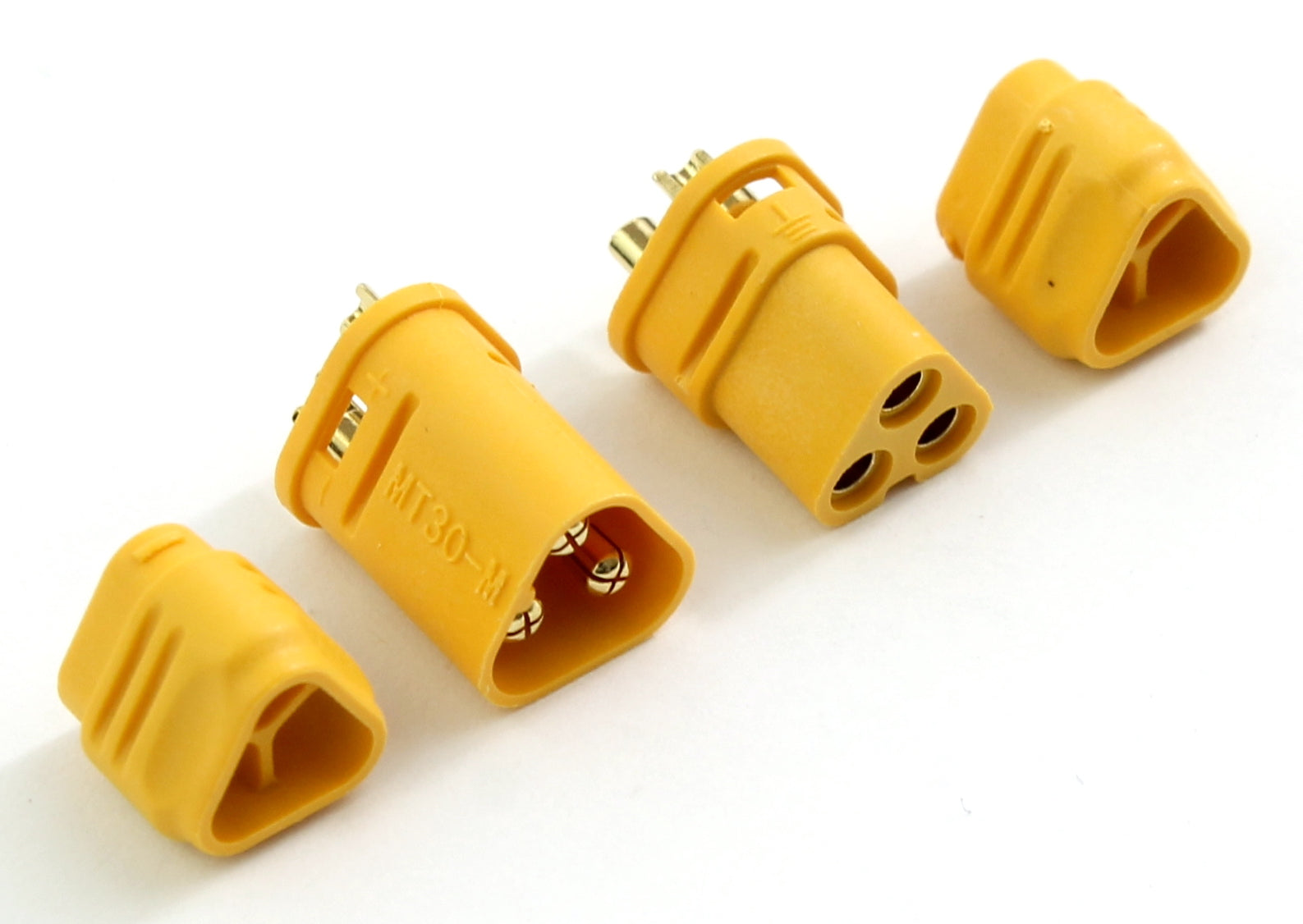

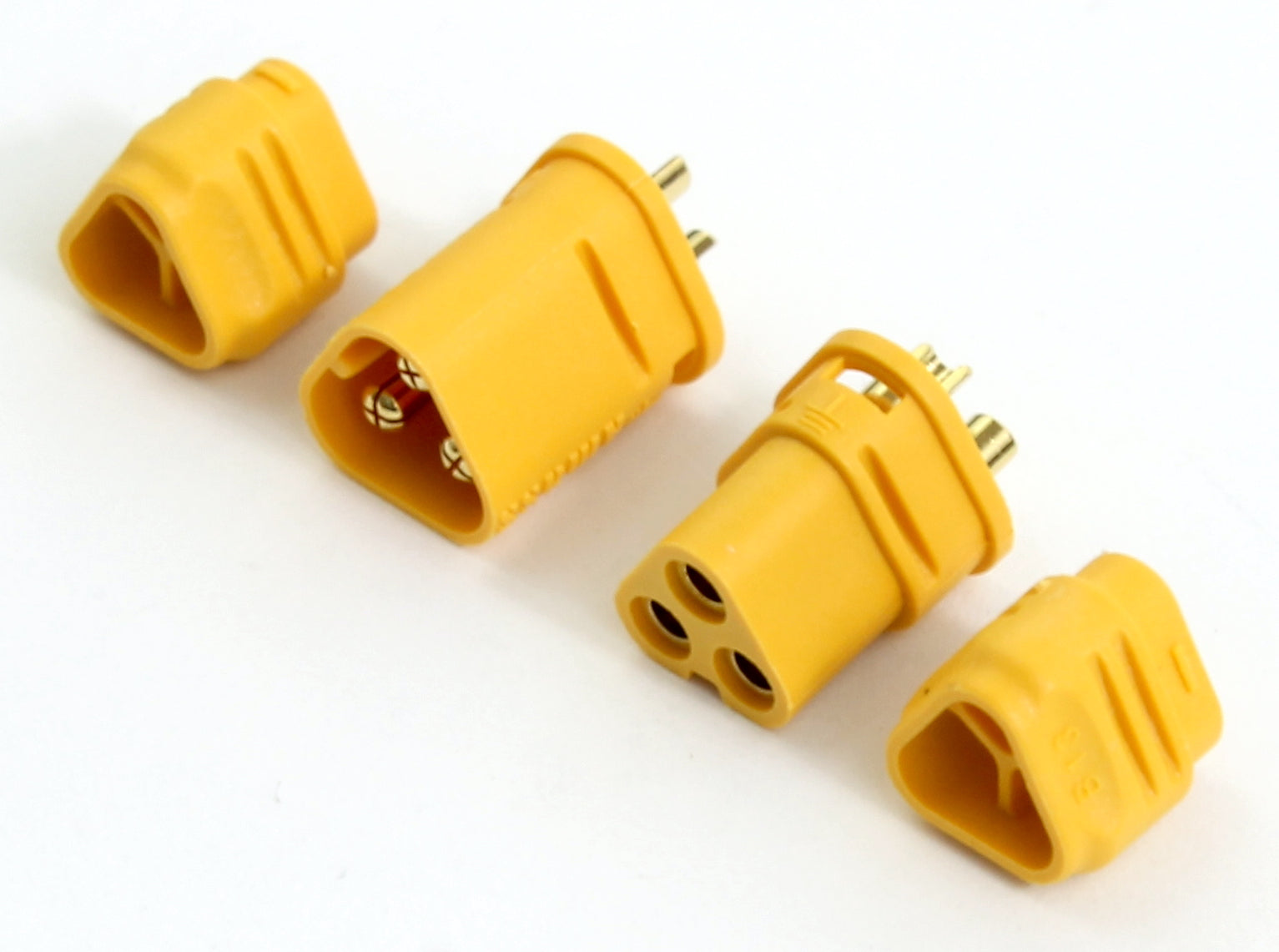

Genuine Yellow Amass MT30 Male & Female Connectors With Insulated Caps 3 pin

Genuine Yellow Amass MT30 Male & Female Connectors With Insulated Caps 3 pin

Regular price £26.75 GBP
Regular price Sale price £26.75 GBP
Sale Sold out
Taxes included.
Quantity

Genuine Yellow Amass MT30 Male & Female Connectors With Insulated Caps - Suitable For most types of electrical project!

  • Maximum Voltage: DC 500v
  • Maximum Current: 30A
  • CR: 0.50mΩ
  • Metal material: Gold plated Brass
  • Plastic material: PA Polyamide / Nylon
  • Usage: In excess of 1000 connections
  • Cable Spec: 14AWG
  • Operating temperature: -20C to 120C

See product options for different quantities and sexes (male/female).

Manufacturers information

High quality, genuine Amass (XT60 patent holders) connectors. Don't accept cheap low quality imitations! Suitable for all RC projects and electrical applications.

  • Solid Bullet Connectors
  • Perfect for applications up to and beyond 30A constant
  • Low resistance for high current capacity
  • Ergonomically designed and easy to grip
  • Protected to avoid shorting and reverse polarity
  • Superior technology suited to today’s high power applications
  • Designed with convenience and reliability in mind
  • Easy to un-solder and reuse

Made from high-temp Nylon and gold plated spring connectors, both included in the injection mould at the time when forming the connector. The MT30 ensures a solid high-amp connection.
