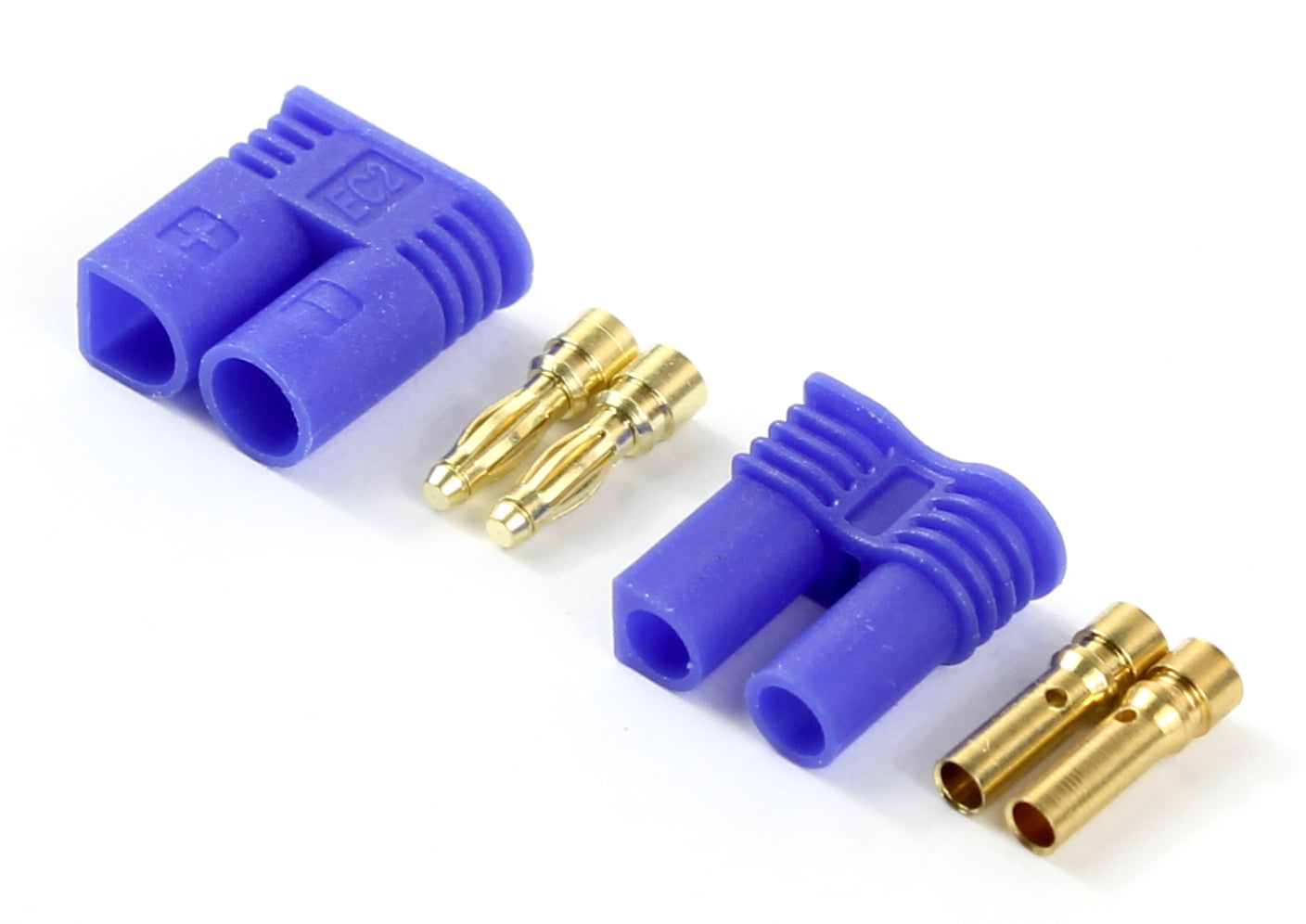

EC2 (2mm Banana / Bullet Connector) Male & Female Connectors

EC2 (2mm banana connectors with housing) Male & Female Connectors - Suitable For All types of Electrical Projects!

High quality EC2 connectors.  Suitable for all RC projects and electrical applications.

• Maximum Voltage: DC 500v

• Maximum Current: 30A

• CR: 0.80mΩ

• Metal material: Gold plated Brass

• Plastic material: PA Polyamide / Nylon

• Usage: In excess of 1000 connections

• Cable Spec: 18AWG

• Operating temperature: -20C to 120C


• Plastic connection casings (no shrink wrap needed)
• Spring loaded terminals for secure, consistent connection
• Copper plate gold terminals with large contact surfaces
• Virtually impossible to connect the wrong way around
• Easy grip casing
• Weight: Male = 0.8g Female = 0.8g Pair = 1.6g
• Designed to be soldered, not crimped

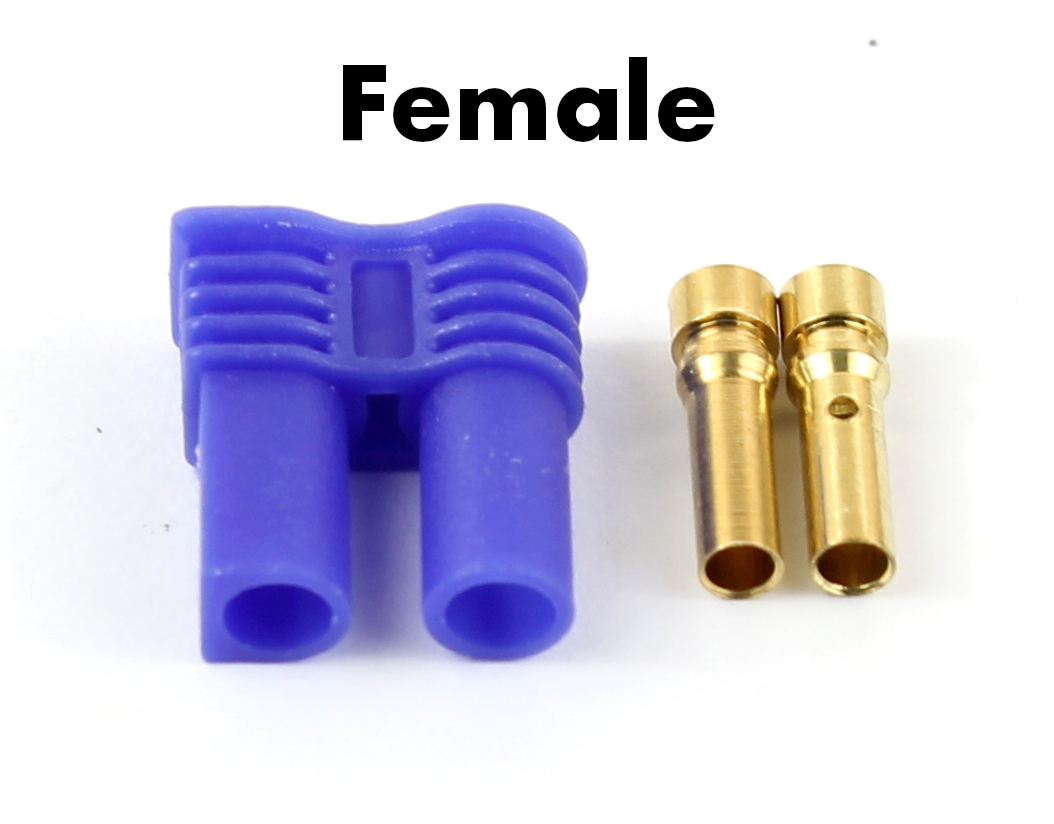

See product options for different quantities and sexes (male/female).
